Product Introduction

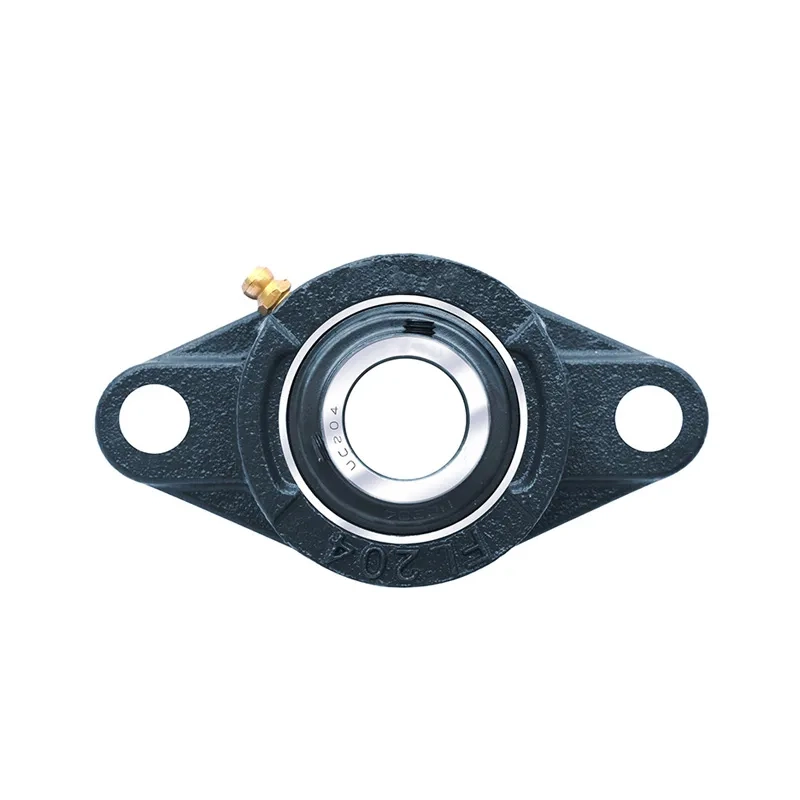

Outer spherical ball bearing is actually a variant of deep groove ball bearing, characterized by a spherical outer diameter surface on its outer ring, which can be fitted into the corresponding concave spherical surface of the bearing seat to achieve centering. A seated outer spherical bearing is a bearing unit that combines a rolling bearing with a bearing seat. Most outer spherical bearings have a spherical outer diameter and are installed together with a bearing seat with a spherical inner hole. They have various structural forms, good universality and interchangeability. At the same time, this type of bearing also has a certain degree of self-aligning design, is easy to install, has a dual structure sealing device, and can work in harsh environments.

Characteristics and advantages

● Equipped with automatic centering function

The outer diameter of the bearing and the inner diameter of the bearing seat are spherical, and there is an automatic centering function between the two, which can compensate for the misalignment of the axis and deformation of the installation bottom caused by installation errors.

● High load capacity

Due to the internal structure of the outer spherical ball bearing being the same as that of the 6200 and 6300 series deep groove ball bearings, the seated outer spherical bearing can not only withstand radial loads, but also certain axial loads, while the working noise of the bearing is low.

● Long service life

It is usually suitable for harsh working environments such as soil, dust, moisture, and high temperatures, ensuring perfect performance and long service life in any working environment.

Excellent sealing performance

Both sides of the outer spherical ball bearing are equipped with heat-resistant and oil resistant rubber sealing rings and steel plate dust cover combination seals, which can effectively prevent external foreign objects from entering the interior of the bearing.

● Sturdy bearing seat

The bearing seat is an integral seat structure with good rigidity, which prevents deformation of the bearing during assembly and is durable under any working conditions.

Product Application

Agricultural machinery, general machinery and transmission equipment, textile and light industry machinery, food processing machinery, etc.
