Product Introduction

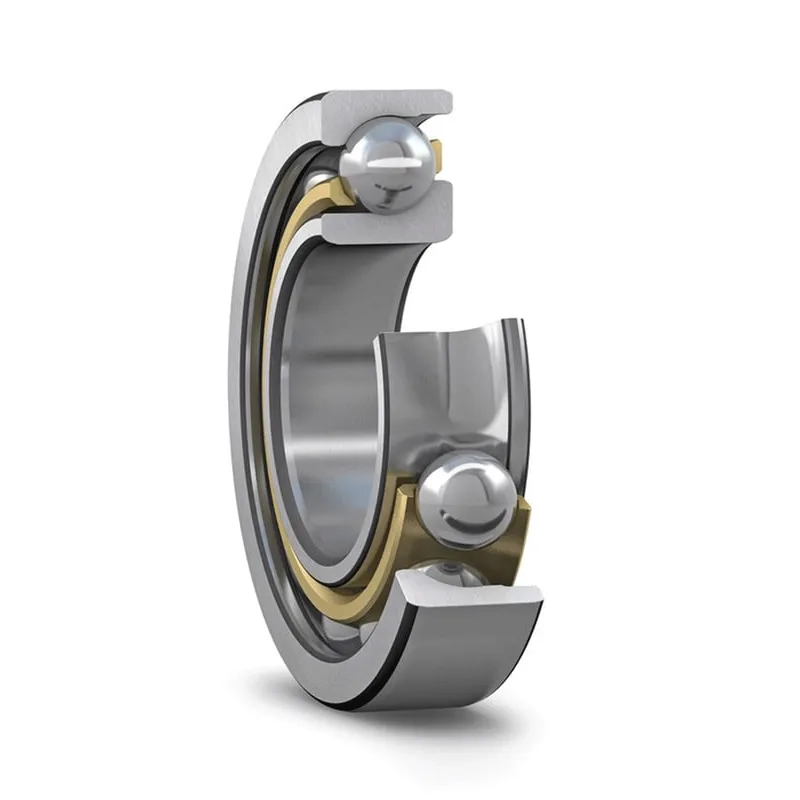

Angular contact ball bearings can withstand high radial and axial loads, while double row angular contact ball bearings can withstand large combined radial and axial loads and torque loads, mainly radial loads, limiting the axial displacement of both sides of the shaft. The tilting ability between the inner and outer rings of double row angular contact ball bearings, which are mainly used to limit the bidirectional axial displacement of the shaft and housing, is limited. The allowable tilting angle depends on the internal clearance, bearing size, internal design, and the forces and moments acting on the bearing. The allowable tilting angle should ensure that no excessive additional stress is generated inside the bearing, and generally nylon or brass solid retainers are used.

Characteristics and advantages

● High load-bearing capacity

The bearing is loaded with a larger number of steel balls, which gives it a high load-bearing capacity. The larger the contact angle, the stronger the axial load-bearing capacity.

● High working speed

The contact area between the rolling element and the raceway is small, the heat generation is low, and it is suitable for high working speeds.

● Universal pairing design

Universal diagonal contact ball bearings, precise axial clearance grouping, more accurate application to customers' different working conditions requirements, operating accuracy P5 level, higher stability of operation.

Product Application

Gearboxes, food packaging machinery, construction machinery, gravity spray guns, inspection and analysis equipment, fine chemical machinery, etc.
